News

2014-06-23 - Original site back online.

I've decided to put this site back up as the Google Code site is pretty hard to navigate. The latest version of RoverLog is 2_7_2 and is available on the download page.

2011-08-06 - Version 2_6_10 is now available.

Go to the download page to get it.

2011-01-25 - Version 2_6_9 is now available.

Go to the download page to get it.

2011-01-24 - Version 2_6_8-1 is now available.

Go to the download page to get it.

2009-09-22 - Version 2_6_6 is now available.

Go to the download page to get it.

2009-09-22 - Notes about Cabrillo Formats.

Folks, please be aware that you have two choices to create the Cabrillo header for your log.

Please note that there is a logheaded.tcl (without the "3") that creates version 2.0 headers. DON'T run this if you are entering a current ARRL contest. I will probably rename this one to something like logheaded2_DO_NOT_USE_THIS_ONE.tcl for the next release. If you have any questions or comments, please direct them to the User Group.

2009-06-04 - Version 2_6_5 is now available.

This may be a record---two releases in one day. Go to the download page to get it.

2009-06-04 - Version 2_6_4 is now available.

Go to the download page to get it.

2009-05-30 - Zip Code database for the Super Module now available.

Download it here: zip.mk.

To use it, run the Super Module, then load the zip.mk database. To look up a Zip Code, type it in. To look up a city name, type it in either City, State, or ST-CITY, e.g. NY-MENDON. The second method is preferred because lookups are performed as you type and you can get a list of all cities that start the same this way.

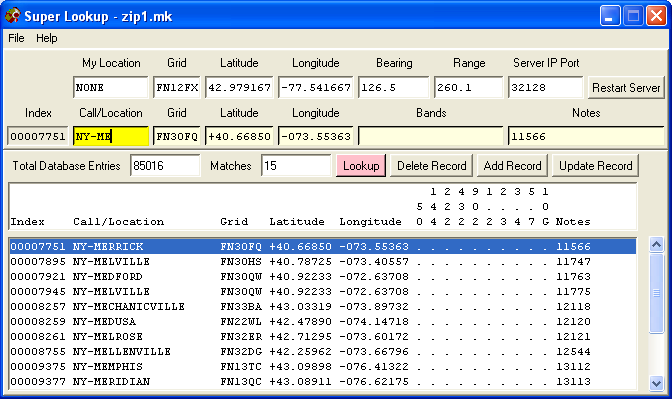

As a reminder, here's a screenshot of the Super Module:

2009-05-29 - Version 2_6_3 is now available.

Go to the download page to get it.

2009-05-14 - Version 2_6_2 is now available.

Go to the download page to get it.

2009-04-02 - Version 2_6_1 is now available.

Go to the download page to get it.

2009-02-19 - Version 2_6_0 is now available.

Go to the download page to get it.

2009-02-05 - Version 2_5_3 is now available.

Go to the download page to get it.

2008-07-31 - Version 2_5_2 is now available.

Go to the download page to get it.

2008-06-09 - Version 2_5_1 is now available.

Go to the download page to get it.

2008-06-01 - Version 2_5_0 is now available.

Go to the download page to get it.

2007-10-25 - A New Way to Learn Everything About RoverLog is Available

Download here: RoverLog Training Video (699kB).

2007-09-20 - Version 2_4_7 is now available.

Go to the download page to get it.

2007-08-21 - Version 2_4_6 is now available.

Go to the download page to get it.

2007-07-18 - Version 2_4_5 is now available.

Go to the download page to get it.

2007-06-13 - Version 2_4_4 is now available.

Go to the download page to get it.

To fix your log so it will be accepted by the ARRL robot, do the following:

  1. BACKUP YOUR LOG!
  2. Start RoverLog with your log.
  3. File->Save.

When your log is loaded, RoverLog translates 1.2 to 1.2G, etc. When your log is saved, RoverLog truncates 6-digit grids to 4-digits.

2007-01-19 - Version 2_4_3 is now available.

Go to the download page to get it.

  • Fixed a parsing error that made receiving a pass fail.
  • Added the capability to change the height and width of the grid map.
  • 2007-01-18 - Version 2_4_2 is now available.

    Go to the download page to get it.

  • To speed up log loading, fill up the call stack only after the whole log has been loaded.
  • Made annunciator and pass indication more pronounced.
  • For sked window, added earlier/later buttons where scrollbar would be.
  • Remove automatic azimuth in notes when making a pass or sked, it causes confusion if the operator changes the grid square without adjusting the Az.
  • Moved send log and send skeds buttons away from net message on net window.
  • Prompt to confirm sending whole log/skeds from Net window.
  • Fixed: enter N2LB, space, EN99, space, T (to finish call), space. Grid lookup happens, but I typed EN99.
  • Super lookup, convert city, st to st-city for lookup
  • Added an "Info" window to review old annunciator messages. Click on Info... to reveal.
  • Made it so Super lookup does not cause Roverlog to lock up when RoverLog is set up to use Super lookup responses.
  • 2006-06-15 - Loading Logs

    W1RT alerted me to a "feature" that you might run across when loading logs. Version 2_4_1 expects 79-character log lines. This includes room for a 6-digit received grid square. When saving the log, RoverLog pads the lines with spaces if you have log entries with 4-digit squares (obviously you will).

    If you send the log through e-mail or otherwise process it, the two trailing spaces may get chopped off. Version 2_4_1 will get confused in this case and use the previous 6-digit square for successive entries. This will lower the score RoverLog indicates, but will NOT impact the score the ARRL calculates for you.

    If you have not post-processed your log or were careful not to chop off the 2 trailing spaces on these lines, this will not impact you.

    This will be fixed in 2_4_2, but if you absolutely must have a fix because your logs got cooked somehow, please use the patched roverlog.tcl, version 2_4_1j, located at http://roverlog.2ub.org/roverlog-2_4_1j.tcl.

    When version 2_4_2 comes out, I will no longer support 2_4_1j.

    2006-06-08 - Updated Manual Online and Available at RoverLog Store

  • I have updated the manual to version 2_4_1. You can download the manual from this web site, or you can visit the RoverLog Store to purchase a printed copy.
  • 2006-06-08 - Version 2_4_1 is now available.

    Go to the download page to get it.

  • Added new Pass Band checkboxes so you can tell the seat you're passing to (and all other multi-op seats) what bands a guy has.
  • Added an option to disable Super Lookup's response to RoverLog prompting to use a found callsign/grid.
  • Added a confirm dialog when deleting a record in Super Lookup.
  • Super lookup now ignores "/R" etc.
  • Super lookup now displays out grid first, then Lat/Lon.
  • Added an option to allow Super Lookup to search as you're typing.
  • Made it so the log now scrolls to the bottom after logging a local QSO.
  • Rotor Module now supports DDE interface with user-specified service/topic.
  • Added a concept of a sked that has been made. It's not deleted, just marked as complete. "Made" skeds are displayed in gray.
  • Old News

    Introduction

    RoverLog is a contest logging program for VHF, UHF, and microwave contests that use Maidenhead grid squares as their exchange. The original specification for this program was written by Sigurd Kimpel, KJ1K. The actual program was written by Tom Mayo, N1MU. The program is distributed under the Gnu Public License, which basically means the source code must always be kept free.

    Requirements

    RoverLog was written in a language called Tcl/Tk (pronounced Tickle Tee Kay). Tcl/Tk is a windowed scripting language. Many Windows users will never need to know this as stand-alone executables are provided with the distribution. Other users must have Tcl/Tk installed.

    If you are running a non-Windows platform and do not already have Tcl/Tk installed, select this link http://www.activestate.com/Products/ActiveTcl/download.plex to find binaries for several platforms.

    If there are no pre-built binaries available for your platform, you can get the source code and compile it yourself from this link http://tcl.activestate.com/software/tcltk/downloadnow84.tml. Note: It's a good idea to make sure you are getting the latest version of Tcl/Tk if you decide to download it from this link.

    For Linux, here are some helpful links: http://www.redhat.com/apps/download/, http://www.debian.org/distrib/packages (Search for Tcl and Tk separately).

    For the brave, you can find out more about the development of Tcl/Tk here: http://tcl.sourceforge.net/.

    To use RoverLog's voice and CW keyer, the Snack library is needed. Windows users will find this library included in the distribution. Other users can find information about Snack here http://www.speech.kth.se/snack/.

    Features

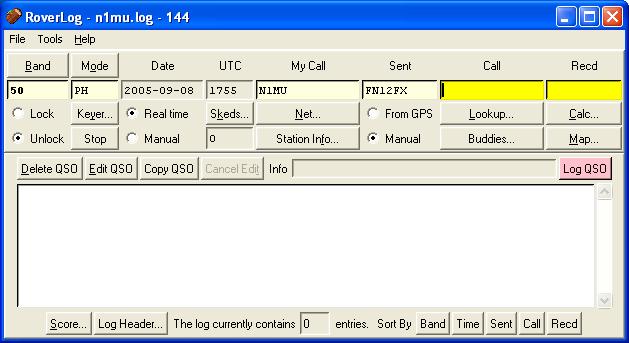

    Logging is performed using an entry dialog in the Main Window and logs are stored as plain text Cabrillo formatted files. The log can be sorted by several fields to allow you to examine different patterns.

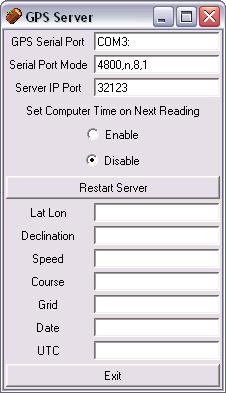

    If you wish to perform automatic position detection using an NMEA GPS receiver, run gps.tcl first. This provides a server which may be polled for the current grid square.

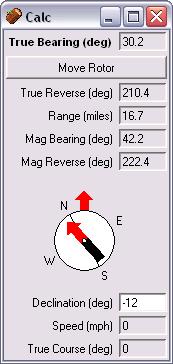

    To display the Calculator Window which computes the bearing and distance to the remote station, use the "Calc" button.

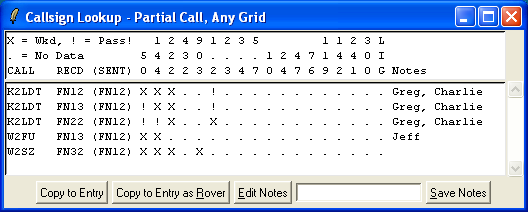

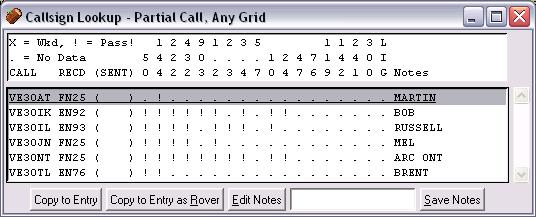

    To lookup a station in the log, click the "Lookup" button. The QSOs needed with this station from the current grid are listed. RoverLog performs lookups as partial lookups.

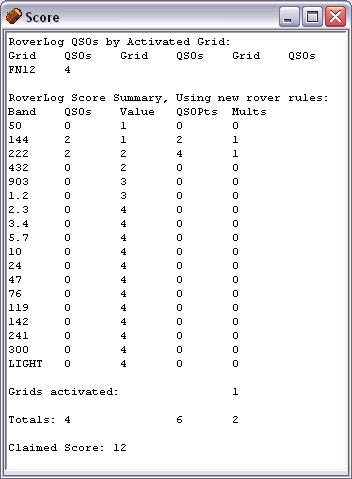

    Click "Score" to display the Score Window which keeps a running tally of QSOs, QSO points, and multipliers per band, as well as total score.

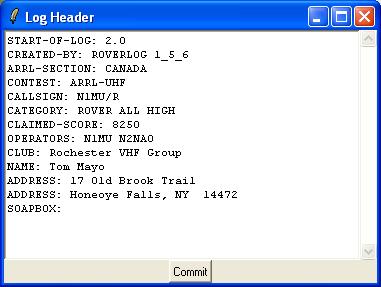

    The Cabrillo Log Header is loaded into a separate Log Header Window for editing. Each time the log is opened or saved, the header goes along for the ride. The score field in the header is updated with the running log.

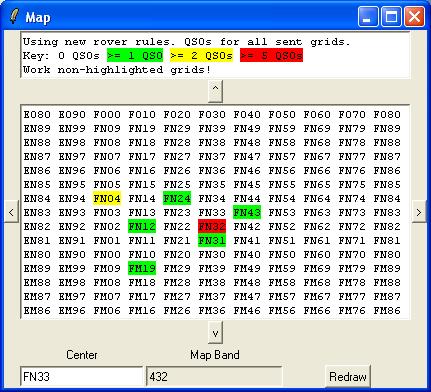

    The Grid Map Window shows stations worked on the current band, and is accessed by clicking the "Map" button. The center grid and band for the map track the fields on the main windows.

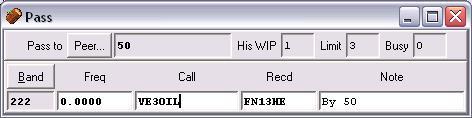

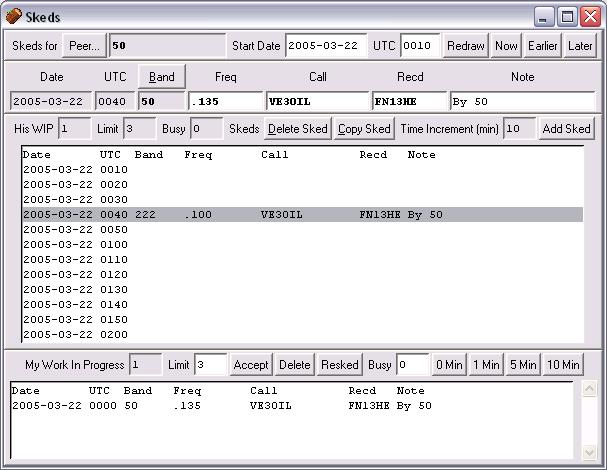

    You can schedule QSOs using the Pass Window or the Sked Window. A popup reminds you of the sked when it is time. You can proceed with the sked or postpone. Skeds are saved to a file so they are reloaded if you restart RoverLog.

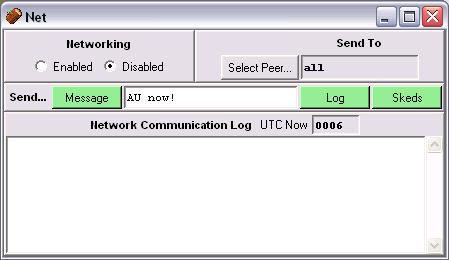

    RoverLog's networking capabilities allow you to share QSO logging, type messages to other operators, and send logs.

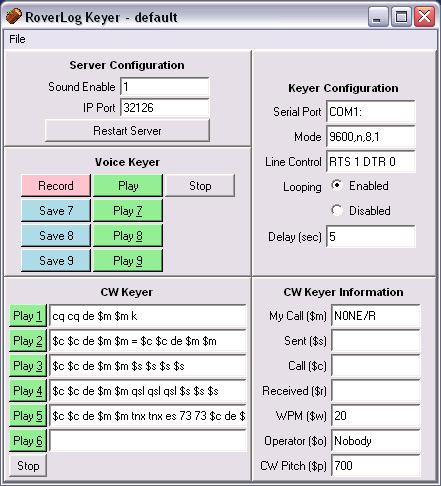

    The Keyer Window allows you to automatically send CW and voice messages. Five of the CW messages are automatically generated from the QSO information in the main screen and one CW message can be typed and sent on the fly by pressing Return. The voice messages can be saved to disk and are reloaded each time you start RoverLog. The keyer works with your computer's audio interface and uses the RTS line of a serial port for transmit keying.

    With RoverLog, you can enter QSOs in Real Time or after the fact with a single mouse click, without an elaborate procedure off line.

    RoverLog has powerful QSO editing cababilities not found in other programs. Click "Edit" to bring the selected QSO into the editing fields. When done editing, click "Log" to write the modified entry to the log. While editing the entry, click "Delete" to remove it from the log. To abort editing, click "Edit" a second time.

    Options can be entered in a file called roverlog.ini. Here is an example roverlog.ini. Other examples are included in the distribution.

    Download

    Please consider joining the RoverLog Users Group so you can keep up to date on new releases as they become available.

    Click this link to download the complete RoverLog distribution.

    Installation

    Quick Start

    Please see the Quick Start section in the manual.

    Please Help Support RoverLog Development

    If you like this program and/or would like more features, please send me e-mail at tmayo6 at gmail dot com.

    You are welcome to use this program as much as you want at no cost. If you would like to send a contribution of $10 to $20 however, please feel free, as long as you promise to let me know what features you want added or changed.

    You can send contributions to:

    Thomas C. Mayo 17 Old Brook Trail Honeoye Falls, NY 14472

    You can make a contribution via PayPal by clicking this button:

    You may also purchase items from the RoverLog Store.

    Other Tools

    Here are some other tools I wrote that you might find helpful:

  • muCalc - A stand alone grid/bearing calculator
  • GridCalc - A stand-alone grid square calculator
